500C flybridge
📏 15.16 m LOA
📐 4.56 m beam
⚖️ 24.4 t (full load)
⛽ 1181 L
🚰 276 L
⚡ 2×205HP Cummins
BEST 500C · AXE HULL STYLE
With excellent driving performance, BEST 500C allows you to freely enjoy the pleasure of sailing. The sleek hull design is sharp and elegant, perfectly balancing style and performance. Simple axe hull with distinctive style, enjoy smooth cruising with ease. Interior design follows warm wood style — spacious master cabin with 1.95m headroom and large portholes.

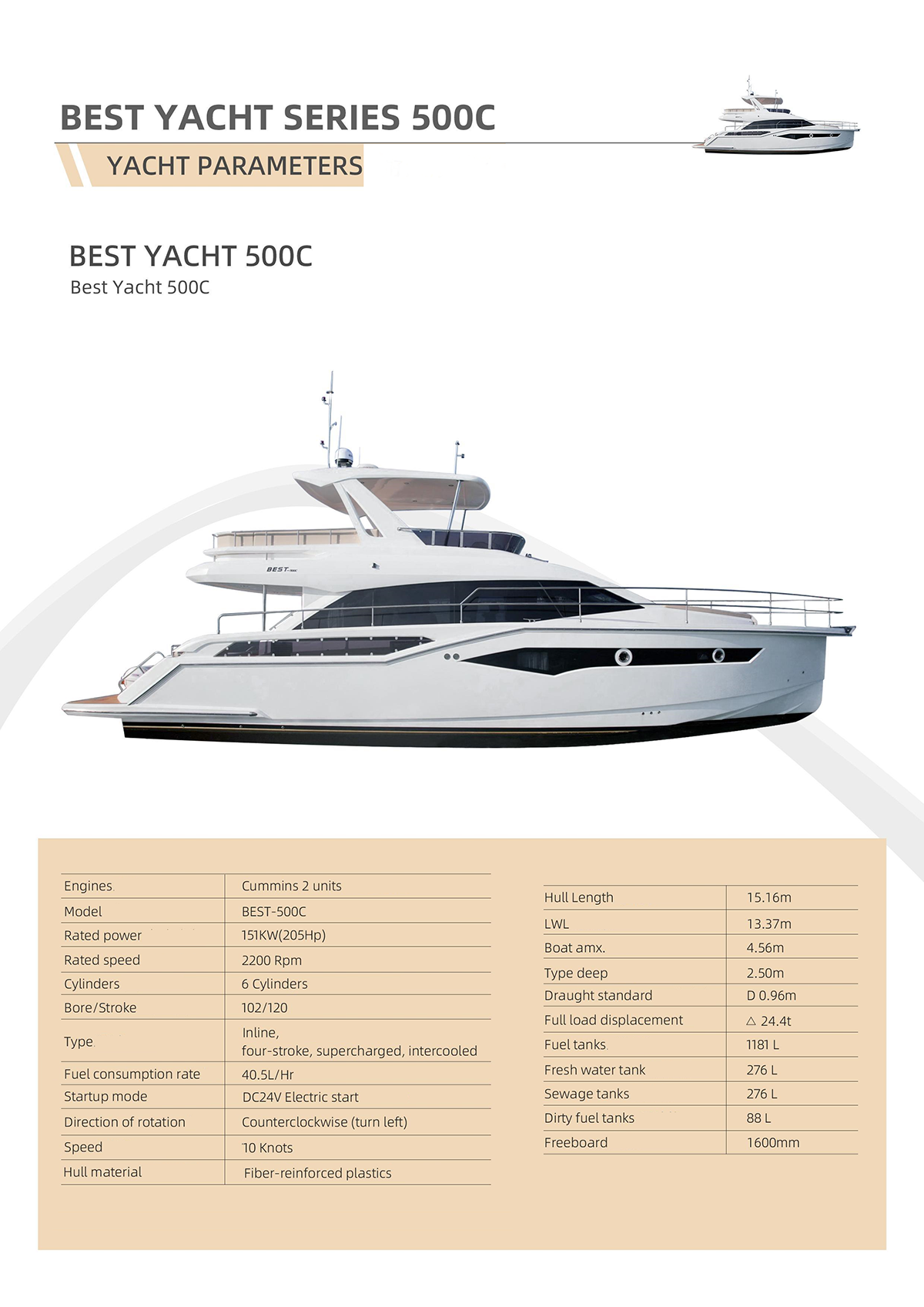

📊 Yacht parameters
| Engines | Cummins 2 units |
| Model | BEST-500C |
| Rated power | 151KW (205Hp) |
| Rated speed | 2200 Rpm |
| Cylinders | 6 Cylinders |
| Fuel consumption rate | 40.5L/Hr |
| Speed | 10 Knots |
| Hull Length | 15.16m |
| LWL | 13.37m |
| Boat width | 4.56m |
| Standard draught | 0.96m |
| Full load displacement | 24.4t |
| Fuel tanks | 1181 L |
| Fresh water tank | 276 L |
CCSIII · capacity 12 people
⚙️ Scientific advancement
- Engine technology: platform aniox grinding, new piston rings, cold start -36°C verified, 6.6kW starter
- Ouma Generator: efficient combustion, 30% lower fuel consumption, 50% lower emissions
- Raymarine digital radar · Garmin 9" GPSMAP922xs (wireless, touch)
- Fishfinder sonar system
🧱 Structure
- CCSIII, 12 persons · vacuum/FRP hand lay‑up
- PVC sandwich · hull vinyl resin · hardwood upholstery, matt lacquer
- Safety glass · polished 316 stainless steel fittings
- Hull/trim/deck/hardtop gelcoat: white
🔧 Machinery & equipment
- 2×Cummins · twin helm stations
- Hydraulic steering Tryflex Sista · stainless tail axle, PSS shaft seal
- Fresh water pump · hot/cold system · 5052 aluminium fuel tank (2200L? → 1181L as per table) visual scale
- Stainless water tank · water heater 220V 50L
- 3 auto bilge pumps 3000GPH · 1 manual 500‑H · wipers (2)
- Air conditioning seawater cooling · ship‑wide fire protection
⚡ Electrical system
- 24V & 220V · volt/ampere meter · charger 40A · 8×200Ah batteries
- Shore power Weipu / 16m cable · LED warm white 24V
- 220V with fault current cutoff
- Anchor/mooring/nav equipment · magnetic compass, GPS all‑in‑one
- Radar, rudder angle · AIS, VHF, 406MHz · yacht air conditioner 220V
- Raymarine commo · custom sound system, karaoke · fishfinder sonar
🚪 Cabin & decks
- Watertight doors · cabin lighting · 220V socket · 316 stainless waste oil pan
- Non‑skid aluminium · soundproofing · 2 forced exhausts · safety handrails
- Battery switch
⛱️ Stern deck
- Stern deck ceiling · long backrest sofa · narcissus gate

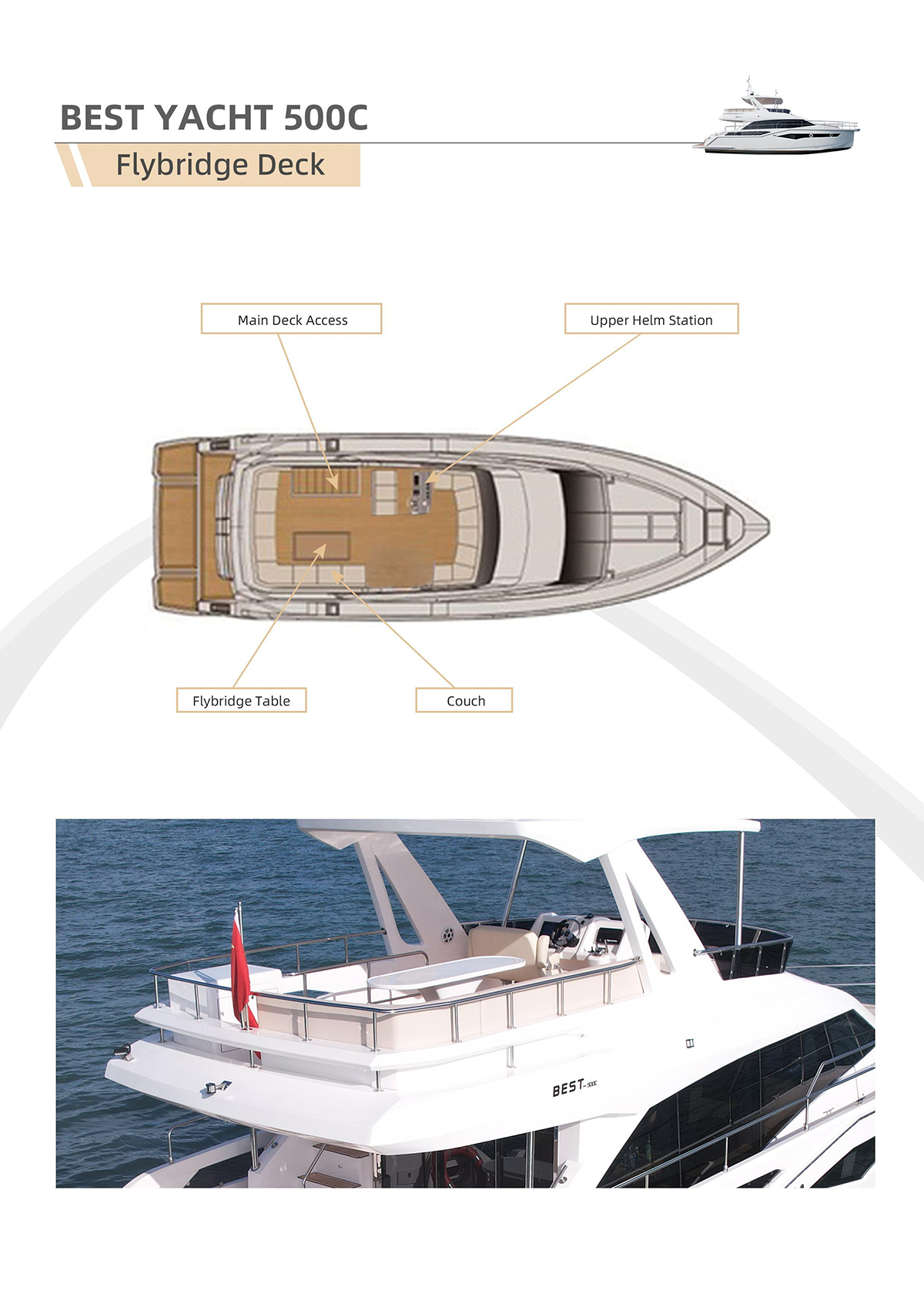

🕹️ Flybridge deck
- Outdoor helm · steering wheel · single helm seat · bar counter
- Sofa set · FRP table · sink cabinet · windshield
- Hatch cover · searchlight · liferaft HYF‑U12 (12p) · 2 lifebuoys · 16 life jackets
⚓ Main deck
- Bow anchor chain guide (2 rollers) · windlass DC24V 1500W
- Stainless anchor chain · square hatch · imitation teak: swim platform, aft deck, bow/side passages
- Diving platform · folding ladder

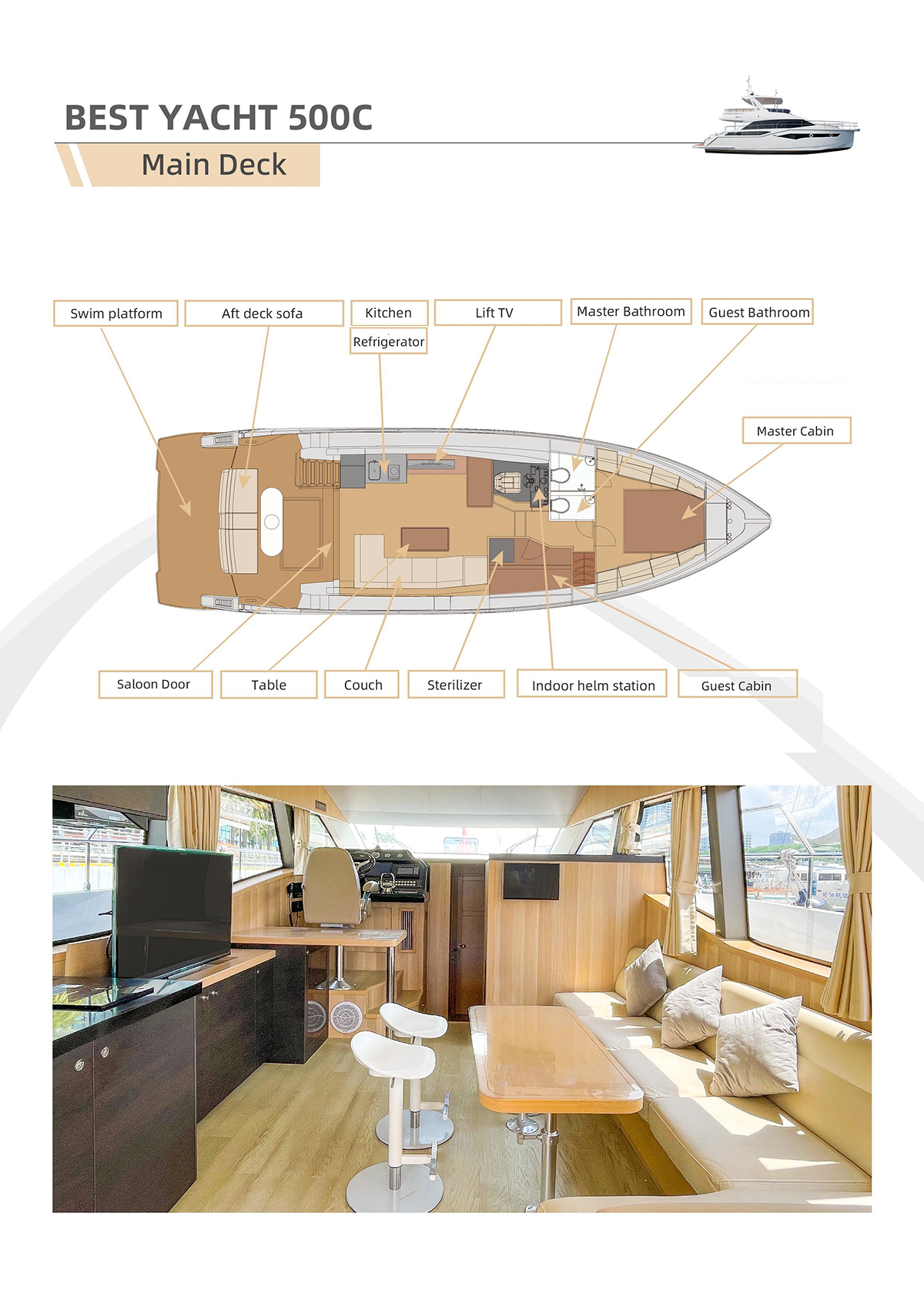

🛋️ Saloon
- Sofa, coffee table · karaoke sound · liftable LED 55" HDTV
- Bar counter · curtain · Sharon helm station
- Dual‑handle controller & engine panel · switchboards · steering wheel
- Multifunctional helm seat
🚽 Bathroom
- Integral FRP structure · separate shower & electric toilet
- Shower faucets · LED dome lights · accessories · mirrors/portholes · curtain
🍳 Kitchen
- Kitchen cabinets · induction cooker · refrigerator · stainless steel sink
- Sterilizer · kitchen hood
🛏️ Master bedroom
- Double bed/wardrobe · square escape window · 2 portholes 200x
- LED dome lights · 1×220V socket · 3 wardrobes
🚪 Guest cabin
- Single bed · 1 porthole 200x · LED dome lights · 1×220V socket · 1 wardrobe
🛡️ Security & other
- Stainless steel string guards · standard fire system · standard life‑saving
- User manual · electric horn · Aqua Signal navigation lights
📞 Contact
✉️ leon@bestshipyard.com
📞 +011-86-19332808067
Let’s discuss your next yacht project.
📡 Navigation & comms
- GPS all‑in‑one · radar · AIS · VHF · 406MHz EPIRB
- Raymarine package · Garmin 9" GPSMAP922xs
- Rudder angle indicator · magnetic compass
- Searchlight · signaling equipment
🔋 Battery summary
- 8 pcs 200Ah (24V/12V system) · 40A charger · shore power 16m
🧊 1.95m headroom · warm wood style · 55" lift TV · karaoke
⚙️ 2×205HP Cummins · 10 kn cruise · 1181L fuel
⚓ 316 stainless · windlass 1500W · teak‑style decking
🔥 fire & lifesaving · AIS · VHF · 406MHz
📡 Raymarine · Garmin GPSMAP922xs
