50' BEST 500E
📏 15.07 m
📐 4.56 m beam
⚖️ 21.43 T
⛽ 1600L
🚰 350L
🚤 20 kn
⚡ 2×425HP Cummins
BEST 500E · BEYOND LUXURY
Stepping into the interior of the BEST 500E feels like entering a luxurious private mansion. The spacious layout, high‑quality materials, and every detail showcase unparalleled luxury and comfort. The cabin is configured to five‑star hotel standards, with warm elegant decoration, independent bathroom, and ample storage. The master suite offers an oversized bed with top mattress, dry‑wet separation, smart toilet, and thermostatic shower. The entertainment area features a top‑notch KTV system, high‑definition TV, open dining bar with professional fridge and oven — your private paradise on the sea.

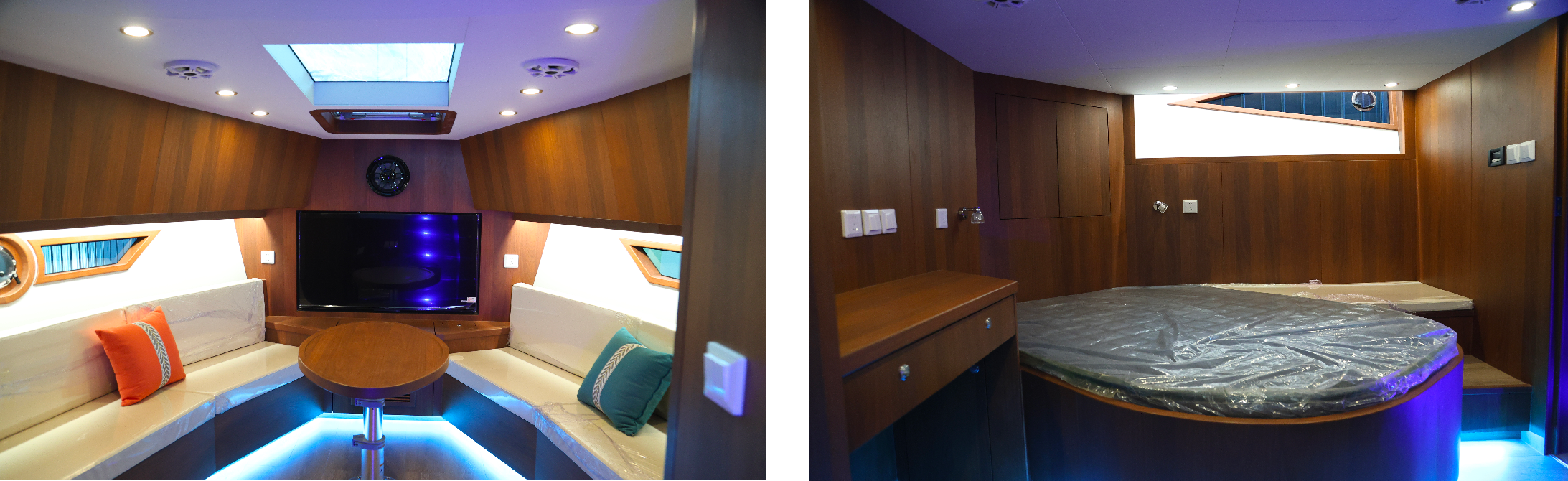

🛌 Master bedroom
- Lightwindows with sunshades, escape window
- Double bed · reading lamp · lockers
- Air conditioning (shared with 2nd bedroom) 1 system
- Private bathroom (shower) · LED light
- 2 marine speakers · LED ambient strip
- AC outlets
🛏️ Second bedroom
- Single bed · lockers
- AC outlets

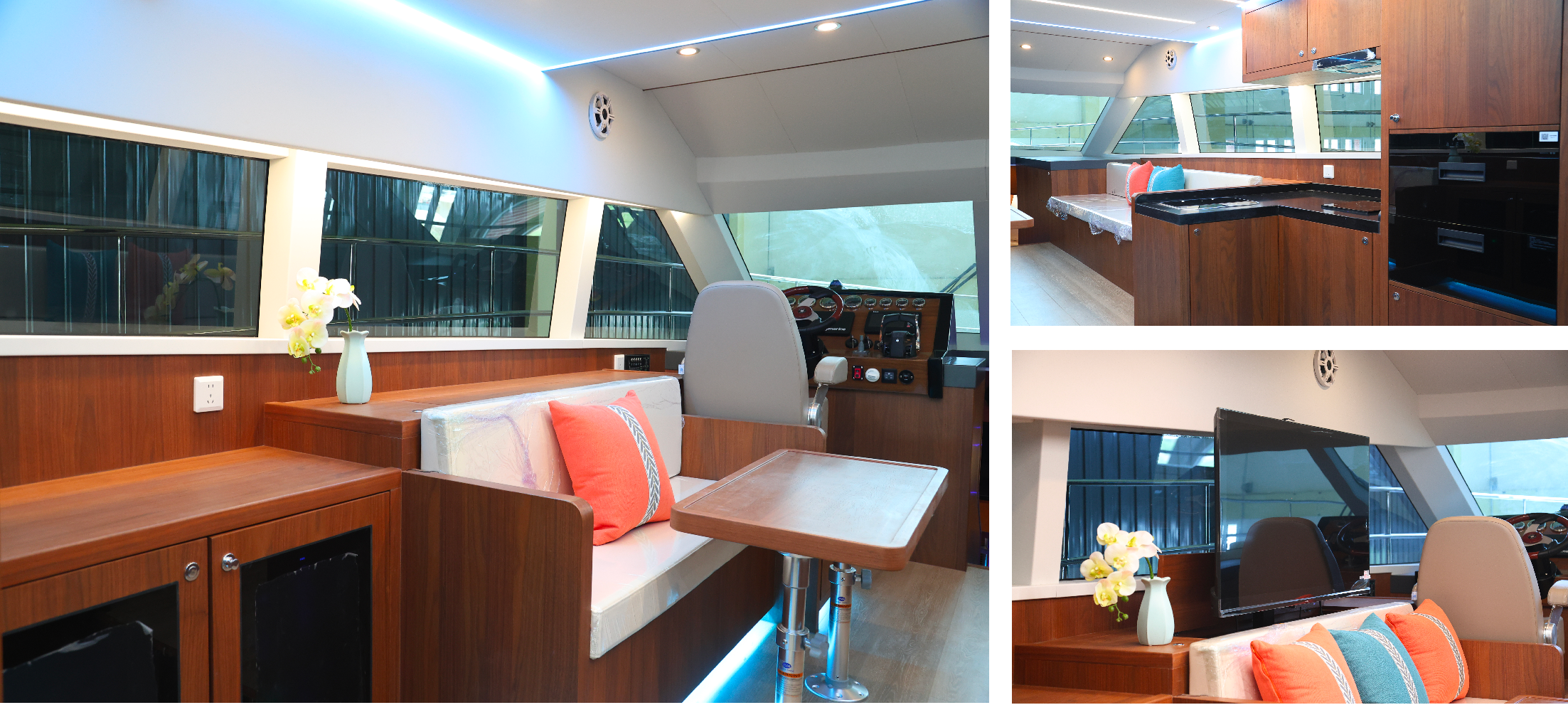

🛋️ Salon room
- Satellite TV · hob extractor fan
- Induction cooker · sink with mixer tap
- Refrigerator (AC220V/DC12V) · disinfection cabinet
- 2×18000 BTU air conditioning (independent)
- Solid wood floor · AC outlets
- 2 marine speakers · 1 low‑voltage horn
- LED ambient strip · sofa · tea table · bar counter
- Adjustable HDTV · boarding ladder
- Imitation teak flooring · sewage shore connection
🚽 Toilet
- Electric toilet (fresh water)
- Hand basin hot/cold · toothbrush cup, towel ring/holder
🕹️ Flybridge
- Bridge station · multifunction display (radar, sonar)
- Main/aux monitoring & control · VHF
- Centralized control (nav lights, anchor siren)
- Searchlight · sofa · fiberglass dining table
- LED lighting · 2 marine speakers · imitation teak
🧭 Navigation equipment
- VHF · GPS (supports Beidou) · AIS system
🔥 Fire rescue
- Heptafluoropropane auto fire extinguisher
- 5kg dry powder extinguisher · portable fire pump
- Life jacket · lifebuoy · siren · fire axe
- Rocket landing signal
⚙️ Power system
- 2×Cummins engines (QSB6.7 425HP) · axis rudder
- Bowthruster (optional) · diesel generator
- Engine room exhaust system
⚓ Anchor & mooring
- 6 stainless steel sheep horns
- Large claw stainless steel anchor · windlass
- Anchor chain · electronic control + throttle handle
⛽ Fuel & water system
- 1600L diesel tank · 350L freshwater tank
- 220L sewage tank · 70L dirty oil tank
- Electric bilge pump · A/C cooling water pump
- Fresh water pump · international dirty oil shore pump
- Gray water sump pump (auto discharge)
- 4 automatic bilge pumps · manual bilge pump
🔋 Electrical system
- Battery pack mainframe 12V 150Ah
- Generator battery 24V 90Ah
- Anchor/side push battery 24V 200Ah
- Cabin switchboard (parallel emergency)
- AC/DC central distribution + charger
- Marine cables · monitoring panel (engine/gen)
- Instrument panel (fuel/water/sewage)
- Wiper · electric horn · nav light · bilge manual button
- Alarm board (bilge & nav light status)
- Navigation lights + stainless steel bracket
12V150Ah main
24V90Ah gen
24V200Ah anchor/side
⛱️ Stern deck
- Sofa · fiberglass dining table
- Shore power interface · triple sliding door
- LED lighting · 2 marine speakers
- Liferaft
🧰 Additional
- Host electronic control & electronic throttle
- Axis rudder system · bowthruster optional
- Centralized control (flybridge)
CCS III · 3 cabins + 2 bathrooms (soft top version)
📐 Dimensions & layout
- Length overall 50' (15.07 m) · Beam 14'96" (4.56 m)
- Draft 2'9" (0.96 m) · Displacement 40785 Lbs (21.43 t)
- Fuel 1600L · Fresh water 350L · Sewage 220L
- 3 cabins, 2 bathrooms · Certification CCS III
- Design speed 20 knots · Engines Cummins 425HP×2
soft top version bowthruster opt.
🧭 3 cabins · 2 bathrooms · flybridge · KTV area · diesel generator
🔋 12V/24V systems · 1600L fuel · 350L water
⚓ 6 stainless steel horns · claw anchor · windlass
🔥 heptafluoropropane system · liferaft
📡 GPS/Beidou · AIS · multifunction display
