🛌 Master bedroom

• Lightwindows with sunshades · escape window
• Double bed · reading lamp · lockers
• Air conditioning 19000 BTU
• Separate toilet with shower · LED lighting
• LED ambient strip · AC outlet

🛏️ Second bedroom

• Single bed · lockers
• AC outlet

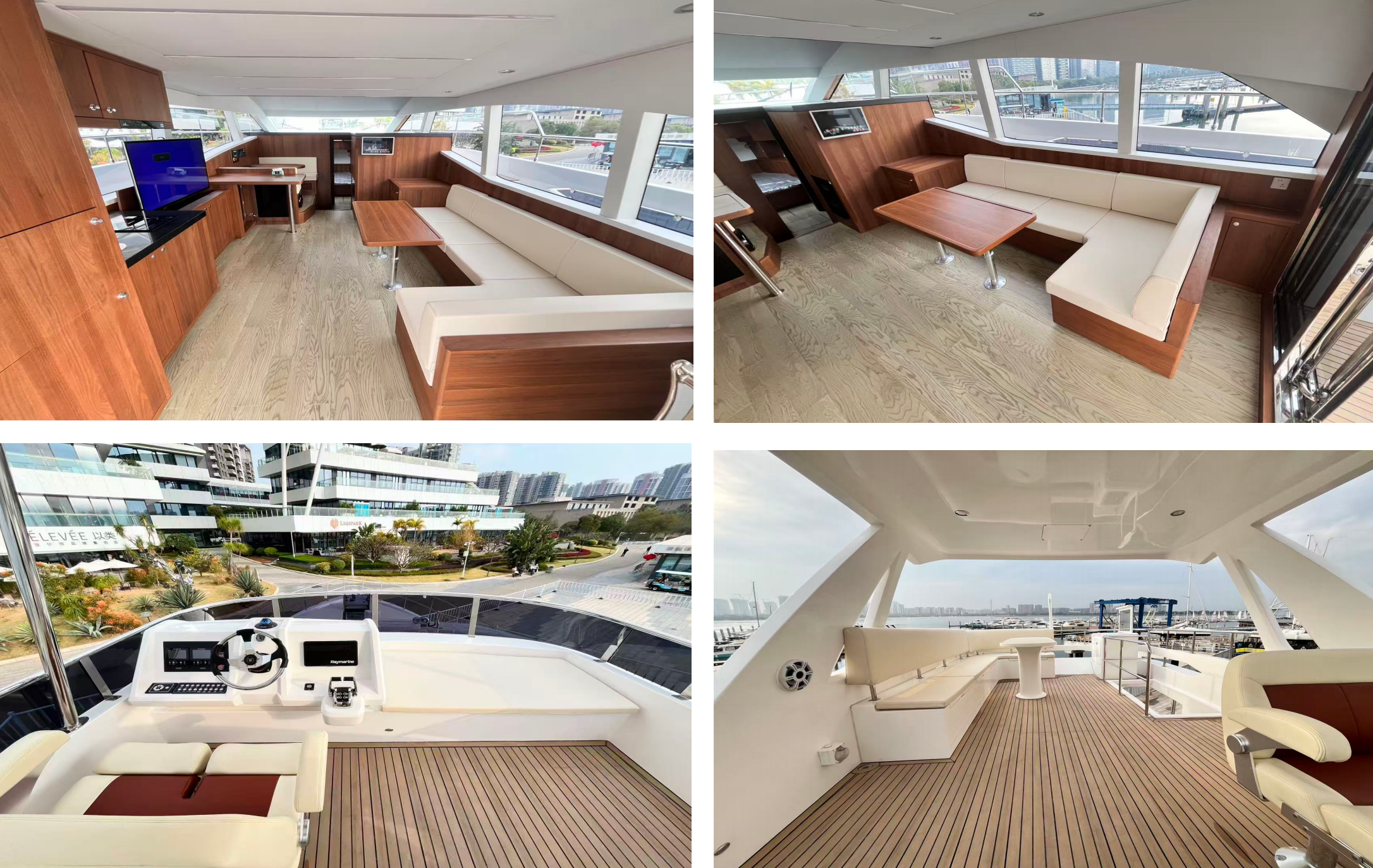

🛋️ Salon room

• Whole ship control system (main bridge)
• Couch · teapoy · bar counter · tea table
• Adjustable HDTV · karaoke sound system
• Satellite TV · hob extractor fan
• Induction cooker · sink mixer tap
• Refrigerator (AC220V/DC12V) · disinfection cabinet
• Air conditioning (2×18000 BTU independent)
• Solid wood flooring · AC outlets
• 2 marine speakers · 1 low‑voltage horn · LED strip
• Electric toilet (fresh water)

⛱️ Tail deck

• Couch · FRP dining table · shore power interface
• Triple sliding door · LED lighting
• 2 marine speakers · liferaft · rain shower
• Climb gangway · imitation teak flooring
• Domestic sewage shore interface

🕹️ Flybridge

• Bridge station · multifunction display (radar/sonar)
• Main/aux machinery monitoring · VHF Class D
• Centralized control (nav lights, windlass, electric flute)
• Searchlight · couch · FRP table · LED lighting
• 2 marine speakers · FRP hardtop · imitation teak

📡 Avionics

• VHF phone · satellite chart machine (supports Beidou)
• AIS system · emergency radio display / marker
• Radar transponder · multi‑function display (radar/fish/chart)
• Magnetic compass · navigation searchlight

🔥 Fire & life-saving

• Heptafluoropropane automatic release extinguisher
• 5kg portable dry powder extinguisher
• Portable fire pump · buoy · rocket landing signal
• Horn flute · fire barrel

⚙️ Sailing power

• 2 Dongfeng Cummins engines (205HP*2, optional*)
• Shaft rudder system · diesel generator
• Bow side push (optional) · forced exhaust in cabin
• Electronic throttle handle N/A (main electrically controlled)

⚓ Anchoring & mooring

• 6 stainless steel horns
• Large claw force stainless steel anchor
• Anchor chain · windlass

💧 Fuel & water systems

• 1181L diesel tank · 280L fresh water tank
• 280L sewage tank · 88L dirty fuel tank
• Electric bilge pump · A/C cooling water pump
• Fresh water pump · international sewage oil shore pumping
• Gray water sump pump (auto discharge)
• 4 automatic bilge pumps + high level alarm
• Manual bilge pump

🔋 Electrical system

• Battery pack main unit: 24V 200Ah ×2
• Spare (avionics emergency): 12V 400Ah
• Generator battery: 12V 150Ah
• Windlass/side push: 24V 200Ah
• Cabin switchboard (parallel emergency)
• AC/DC central distribution + charger
• Marine cables & wires
• Monitoring panel (engines & generator)
• Instrument panel (fuel/water/sewage)
• Wipers · elec. horn · nav lights · bilge manual buttons
• Alarm board (bilge & nav light status)
• Navigation lights

📋 Dimensions & class

• Length 50' (15.16 m) · Beam 14'96" (4.56 m)
• Draft 2'9" (0.9 m) · Displacement 40785 Lbs / 18500 kg
• Fuel 311 US gal (1181 L) · Water 72 US gal (276 L)
• 2 cabins / 2 bathrooms · Flybridge version
• CCS III · Section 10
